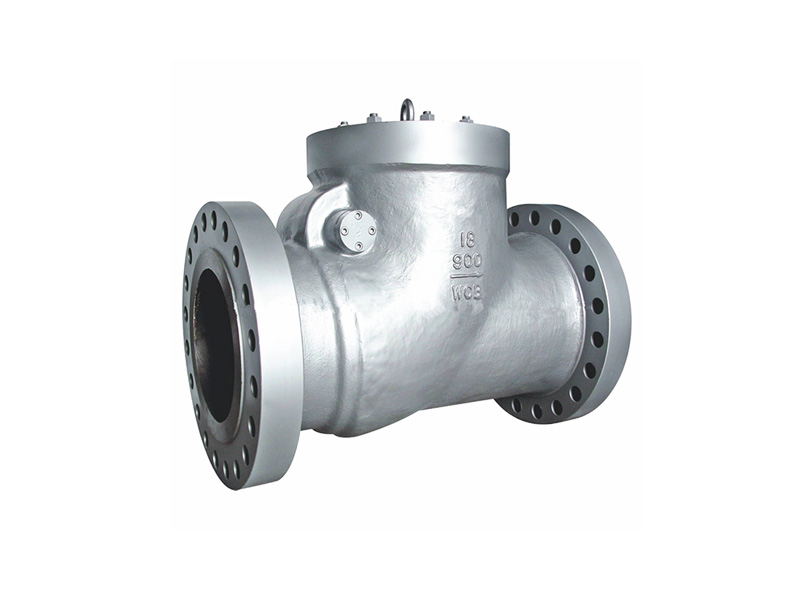

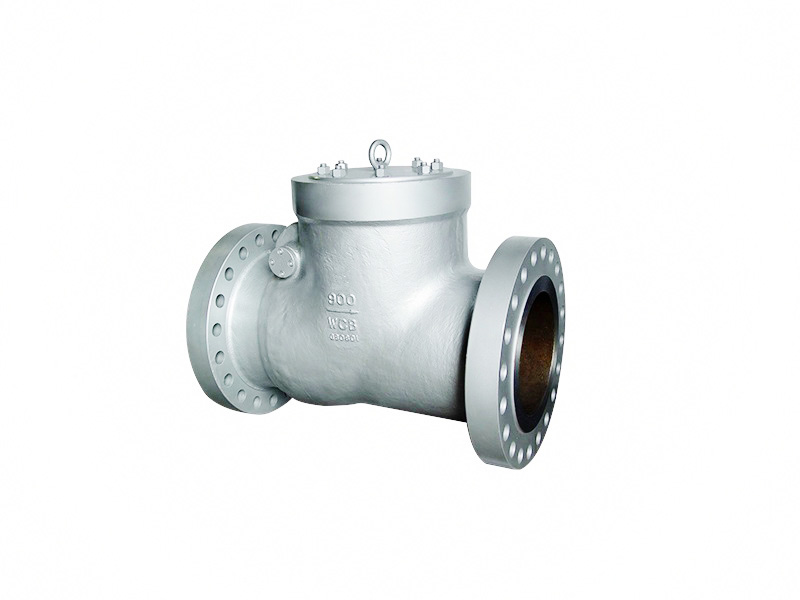

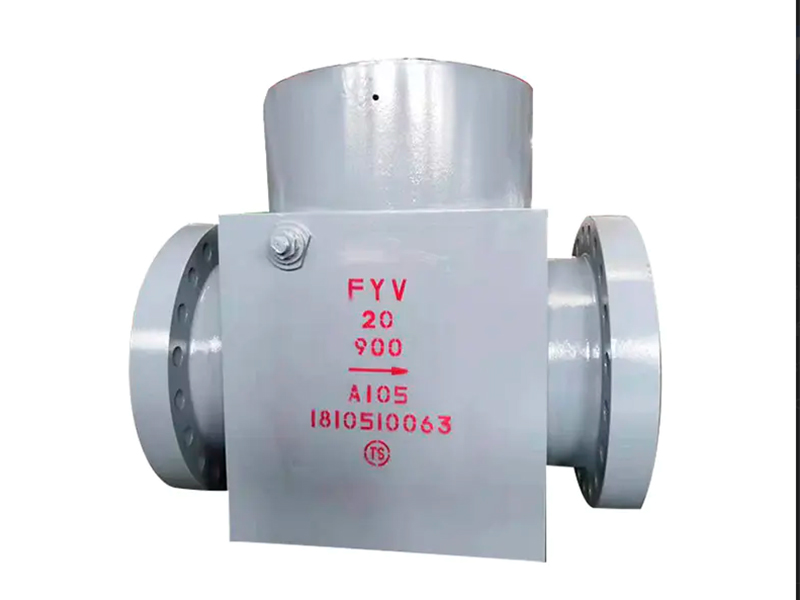

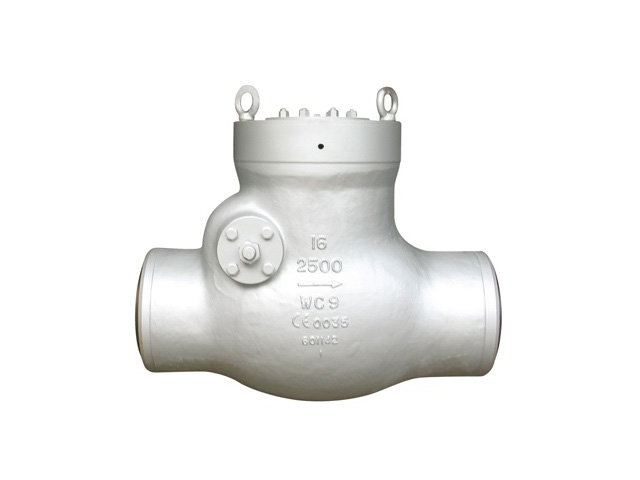

High Pressure Sealing Check Valve

Location: Home Products Check Valves
High Pressure Sealing Check Valve
High Pressure Sealing Check Valve
High Pressure Sealing Check Valve
High Pressure Sealing Check Valve

High Pressure Sealing Check Valve

The High Pressure Sealing Check Valve is specifically designed for applications that require reliable sealing performance under to the limit pressure and temperature conditions. This valve is ideal for high-pressure systems, where maintaining a leak-proof seal is crucial for efficiency and safety. With its advanced pressure seal design, the sealing performance of this valve improves as pressure increases, making it a First choice choice for industries such as power generation, petrochemical, and oil & gas.

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Technical Specifications
- Design & Manufacturing Standards: API 6D / BS 1868
- Face-to-Face Standard: API 6D / ASME B16.10
- End Connection Standard: ASME B16.5 / ASME B16.47
- Testing & Inspection Standard: API 598 / API 6D

Product Range
- Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Monel, Duplex, Inconel
- Size Range: 1/2" to 48"
- Pressure Rating: Class 900 to Class 2500
- End Connection: RF, RTJ, BW
- Working Temperature: -29℃ to +560℃
