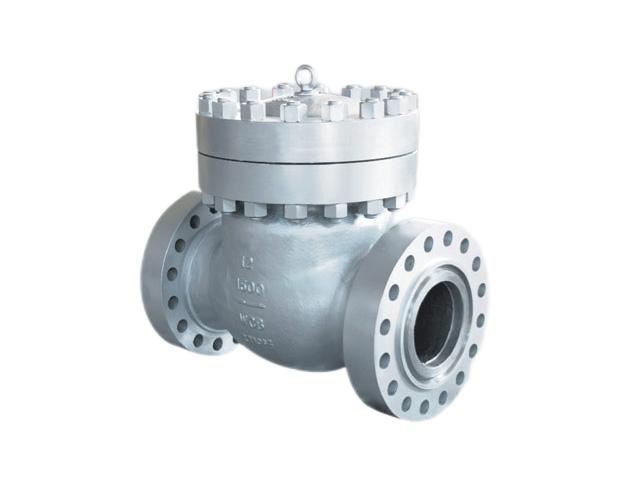

Swing Check Valve

The Swing Check Valve, also known as a Non-return Valve, is a vital component in pipeline systems. It operates automatically, utilizing the force generated by the flowing medium to open or close. This design ensures smooth operation without the need for external control mechanisms.

Inquire

Product Description

Technical Specifications
- Design & Manufacturing Standard: API 6D / BS 1868
- Face-to-Face Standard: API 6D / ASME B16.10
- Flanged Ends Standard: ASME B16.5 / ASME B16.47 / ASME B16.25
- Testing & Inspection Standard: API 598
- Size Range: 1/2" to 60"
- Pressure Rating: Class 150 to Class 2500
- Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Monel, Duplex, Inconel
- End Connection: RF, RTJ, BW
- Operating Temperature: -196℃ to +560℃
