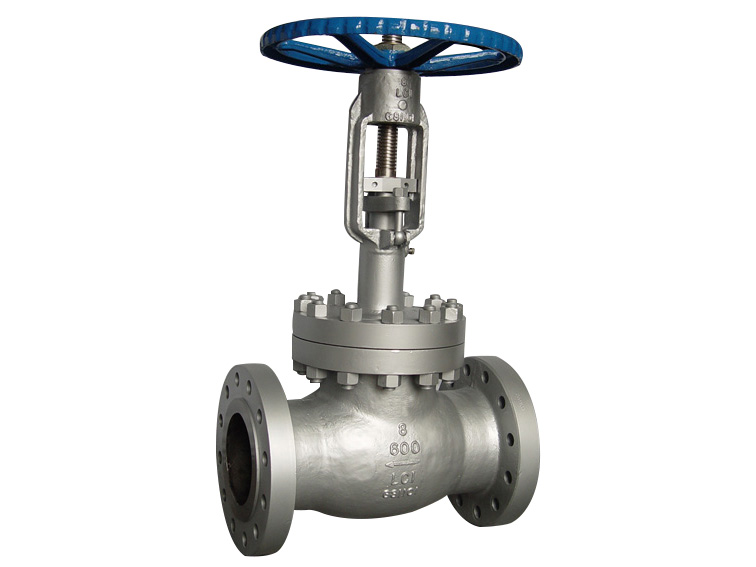

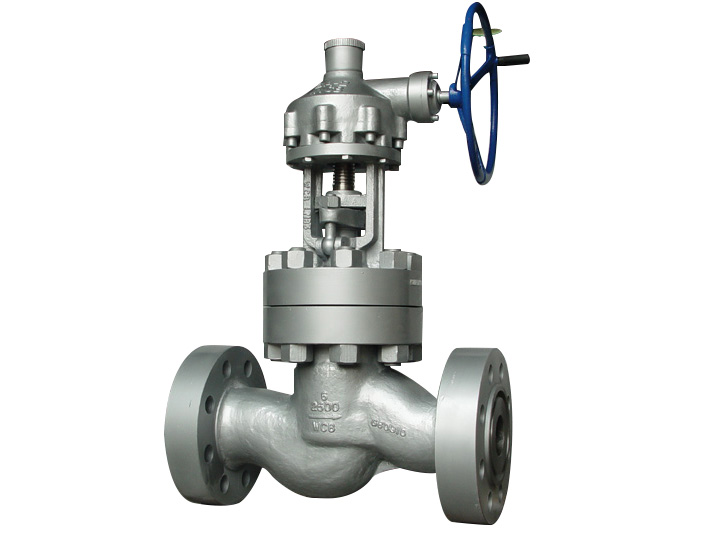

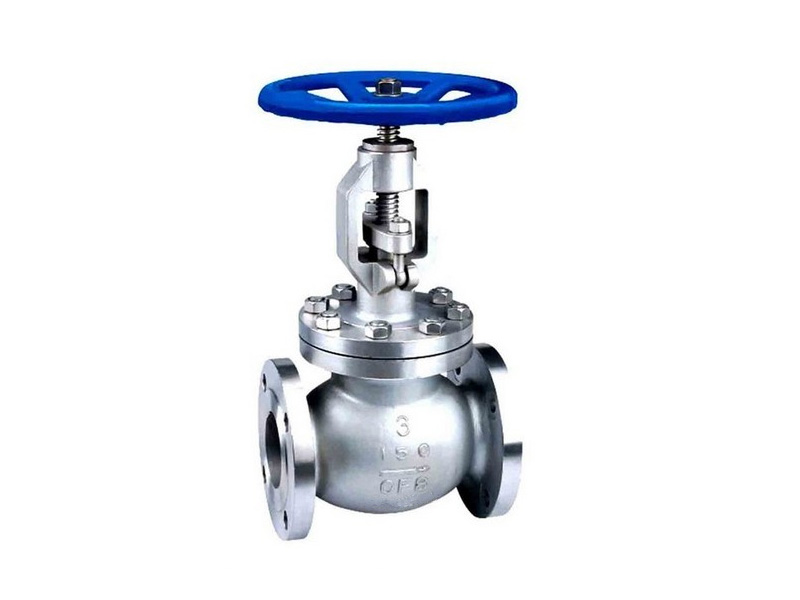

Cast Steel Globe Valve

The Cast Steel Globe Valve is a versatile and reliable valve solution designed for effective flow regulation and shut-off applications. Available in both straight-through and angle patterns, this valve is widely utilized in industries such as oil & gas, petrochemical, power generation, offshore operations, and other demanding environments. With robust construction, precise throttling capabilities, and good sealing performance, the Cast Steel Globe Valve is ideal choice for critical fluid control operations.

Inquire

Product Description

Technical Specifications
- Design & Manufacturing Standard: BS1873 / ASME B16.34
- Face-to-Face Standard: ASME B16.10
- End Connection Standard: ASME B16.5 (Flanged Ends)
- Testing & Inspection Standard: API598
- Body Material Options: Carbon Steel, Stainless Steel, Alloy Steel, Monel, Duplex, Inconel
- Size Range: 1/2" – 36"
- Pressure Rating: Class 150 – Class 2500
- Working Temperature: -29°C to +560°C
- End Connections: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
- Operation Modes: Handwheel, Gearbox, Electric Actuator, Pneumatic Actuator
