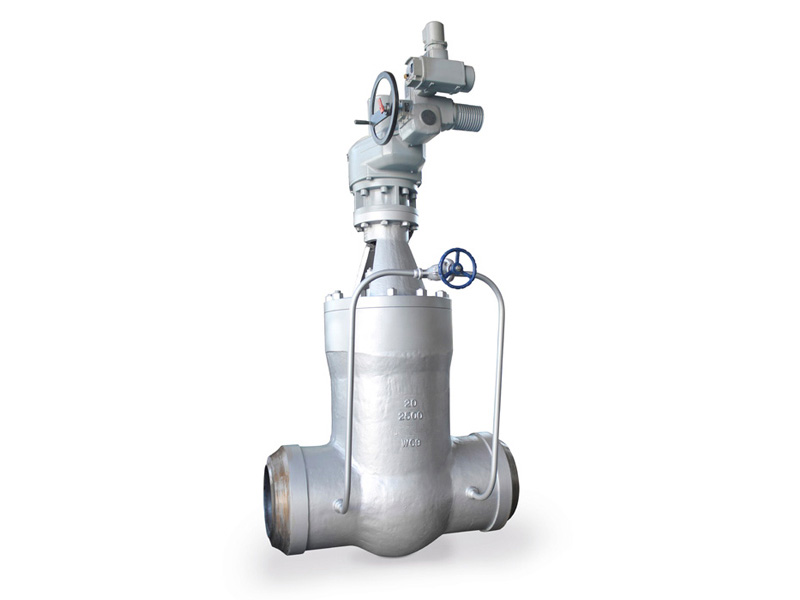

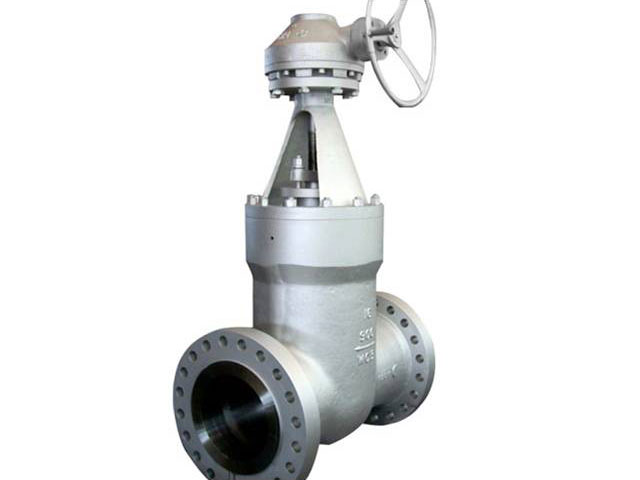

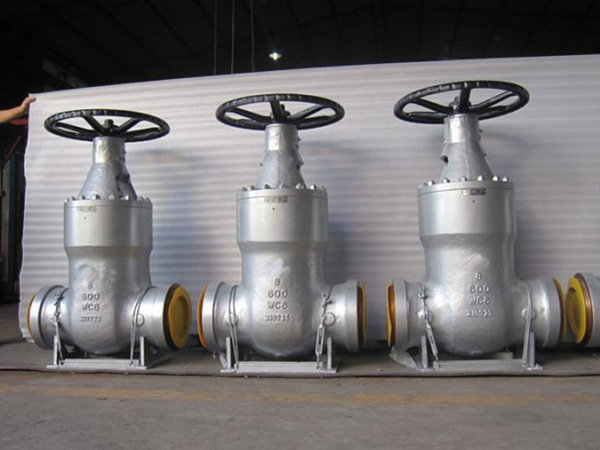

High Pressure Sealing Gate Valve

The High Pressure Sealing Gate Valve is designed for applications requiring high temperature and high-pressure resistance, ensuring reliable and durable operation in demanding industrial environments. Manufactured in accordance with API 600 and ASME B16.34, this valve is widely used in fossil fuel power plants, refineries, and other high-pressure systems.

Inquire

Product Description

Technical Specifications

- Design & Manufacturing Standard: API 600

- Face-to-Face Standard: ASME B16.10 / API 6D

- Flanged Ends Standard: ASME B16.5 / MSS-SP-44 / ASME B16.47 / ASME B16.25

- Testing & Inspection Standard: API 598 / API 6D

Product Range

- Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Monel, Duplex, Inconel

- Size Range: 1/2" – 60"

- Pressure Rating: Class 900 – Class 2500

- End Connection Options: RF, RTJ, BW

- Operating Temperature: -46°C to +560°C

- Operation Modes: Handwheel, Gearbox, Electric, Pneumatic
